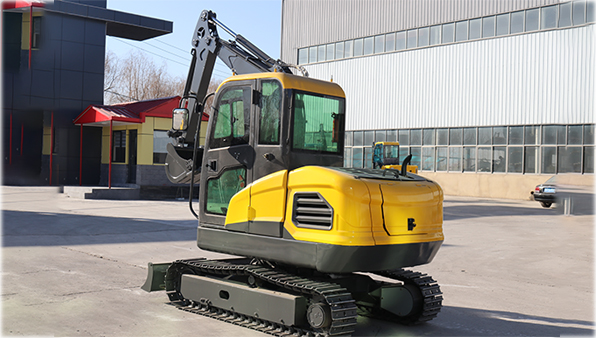

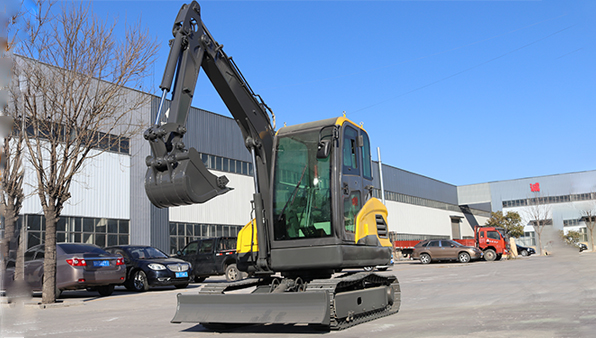

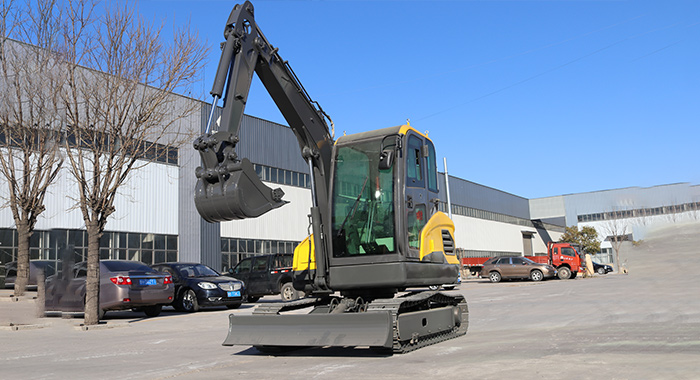

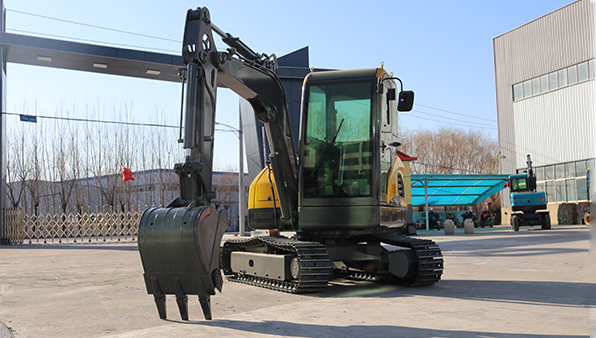

Mini Excavator
Language
The complete set of hydraulic systems are international well-known brands, no rust, no valve jamming, etc. regardless of wind, sun, rain, etc. At the same time, the products can be customized to meet the needs of different countries and customers. It can be applied to a variety of complex environment operations, whether it is mountains, hills, terraced fields, hard ground, paddy fields, it can be easily done.
Weight：3700kg
Width of classis：1600-1703mm
Power：34/19.6kw
Digging depth：2545mm
Digging radius:4630mm
 |
 |  |
 |  |

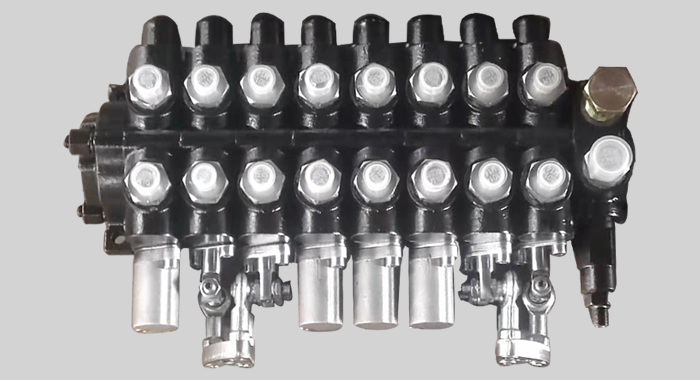

 | Hydraulic SystemIndustry-leading hydraulic system: Accurate flow control according to load changes, excellent micro-operation performance, just like a human hand. Full hydraulic control: All actions are controlled by pilot hydraulic pressure, no empty stroke, good micro-control, safety and precision, smoother action and lower fuel consumption. |

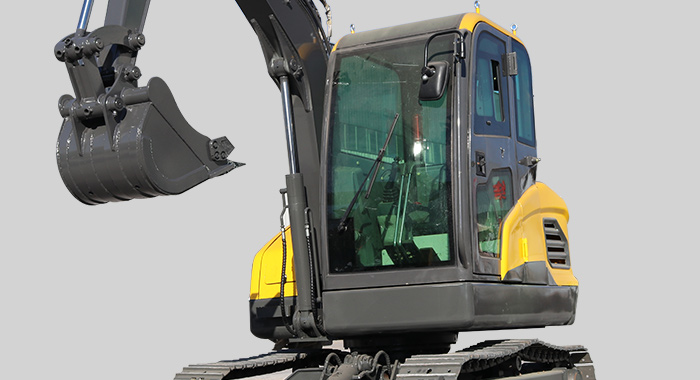

Boom StickThe boom, stick, bucket and push shovel are made of manganese steel plates welded by the robot at one time, and the bearing capacity is stronger. A stop valve is added to the auxiliary pipeline, and the accessories are replaced without oil leakage. Equipped with an extended stick as standard, with a larger working range. |  |

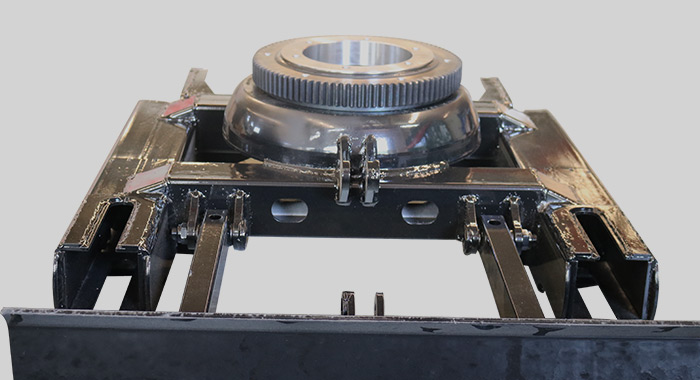

 | Slewing RingEnlarged reinforced slewing bearing, durable and more reliable. Chassis We use tank-type off-road chassis, thickened steel plate, widened size, more stable, solid and durable. |
Reinforced FrameThe reinforced working device and frame, based on the ANSYS platform, optimize the structure, reduce stress concentration, and prolong the average life by 30%. Cab TOPS/ROPS analysis, safe and reliable. |  |

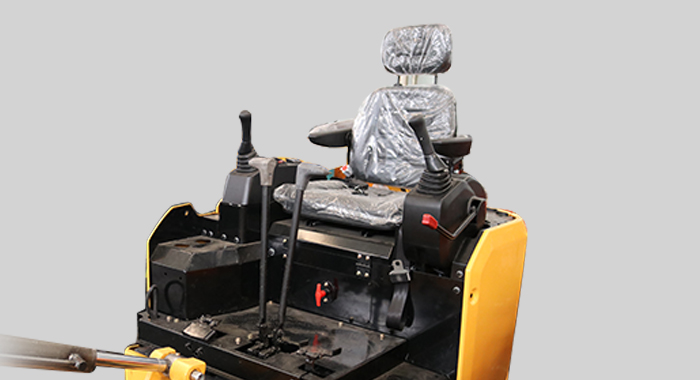

 | Comfortable SpaceThe seat cushion is large, the backrest is raised, and the riding comfort is better, which can meet the driving requirements of drivers of different sizes. The manual operation lever is beautiful and elegant, the foot space is wide and comfortable, and the operation is convenient. Add 12V power supply to facilitate your life. |
MaintenanceThe daily maintenance position is concentrated at the rear of the machine. After opening the hood, you can access the air filter, oil filter, fuel filter, oil gauge, hydraulic oil return filter element, oil filling port, convenient maintenance and good accessibility. Detachable dust filter for easier cleaning. |  |
| MODEL | KV40 |
| WEIGHT | |
| Total weight | 3700kg |
| SIZE | |
| Bucket capacity | 0.16m³ |
| Tyre gauge | 1703mm |
| Track length | 4400mm |
| Platform ground clearance | 557mm |
| Width of chassis | 1600-1703mm |
| Over length | 1090mm |
| Machine height | 22501mm |
| Max. digging radius | 4630mm |
| Max. digging depth | 2545mm |
| Max. digging height | 4450mm |
| Max. dumping height | 3050mm |
| Max. vertical depth | 1400mm |
| Min. gyration radius | 1820mm |
| DRIVE | |
| Engine | Diesel or EPA gasoline engine |
| Engine Type | Koop EURO 5 Diesel engine |
| Output power | 34/19.6kw |
| WALKING CHARACTERISTICS | |
| Working device mode | Back Hole |
| Power | 7kw |
