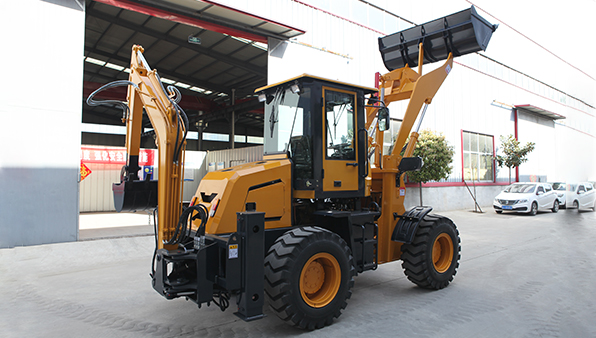

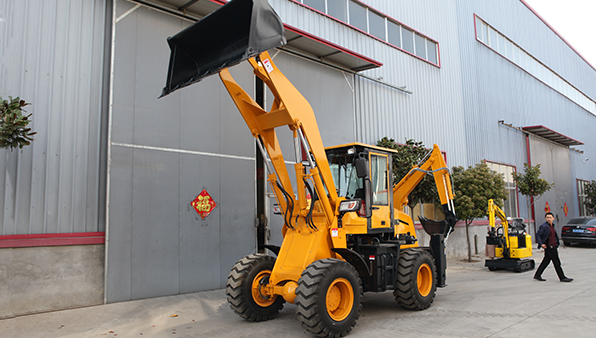

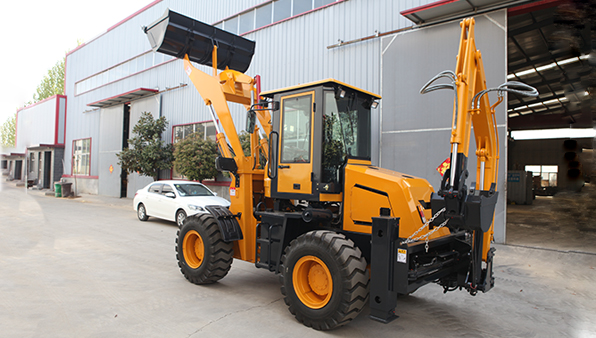

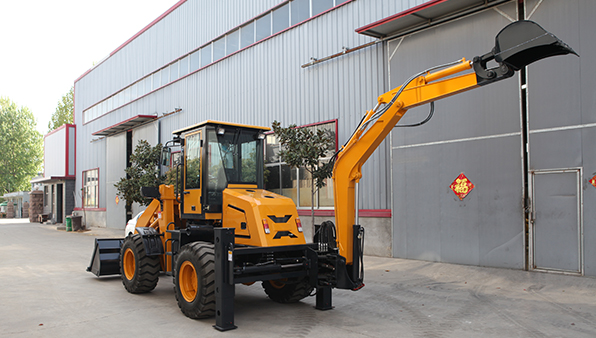

Backhoe Loader
Language
The shovel-digging machine is commonly known as “busy at both ends”. It can perform two-end operations, one end for excavation operations, and the other end for loading and shoveling operations.
Weight：6000kg
Engine Power：76KW/104hp
Vehicle Width:2040mm
System Pressure：16Mpa
Wheel Tread：1580mm
 |
 |  |
 |  |
CabEnlarged cab, safety glass, spacious and bright, movable seat, allowing you to facilitate the conversion operation of digging and loading, simple and flexible. |  |
 | Operation HandleThe coherent compound action one-to-two operation handle is simple and easy to operate, fully meeting your needs! |
Load the BucketIt is used for filling and excavation of roadbed engineering, aggregate and charging of asphalt mixture and cement concrete yard. In addition, it can also carry out operations such as pushing soil, scraping the ground and pulling other machinery. Because the loader has the advantages of fast operation speed, high efficiency, good maneuverability, and easy operation, it has become one of the main types of earthwork construction in engineering construction. |  |
| MODEL | KVL80 |
| WEIGHT | |
| Total weight | 6000kg |
| SIZE | |
| Bucket capacity | 0.7m³ |
| total length | 6500mm |
| total transport height | 2900mm |
| Vehicle width | 2040mm |
| Total Weight | 6000kg |
| tire width | 16-20 |
| Excavator rotation angle | 180° |
| wheel tread | 1580mm |
| wheelbase | 2500mm |
| Bucket maximum capacity | 520mm |
| Minimum ground clearance | 400mm |
| Minimum radius of gyration | 1900mm |
| Maximum grade | 30° |
| DRIVE | |
| Engine speed | 2200r/min |
| engine power | 76KW/104hp |
| hydraulic system pressure | 16Mpa |
| WALKING CHARACTERISTICS | |
| Working device mode | Back Hole |
| fastest walking speed | 35km/h |
