Wheel Excavator
Language
Wheeled excavators are used in airports, ports, oil fields, mines, urban and rural construction, farmland and water conservancy and other operation occasions with their distinctive characteristics of fast walking speed, flexible and rapid transfer and rapid replacement of a variety of operation devices. They are known as “good helpers” in the construction field.
Length：5600mm
Height：2400mm
Weight：3000kg
Bucket Capacity：0.15m³
Engine Power：37kw/50
 |
 |  |
 |  |

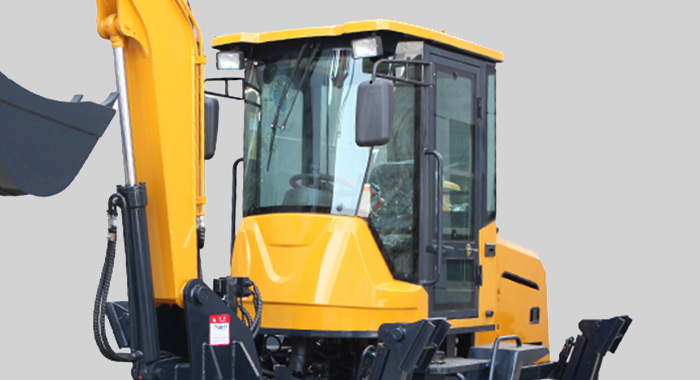

CabDesigned according to the principles of engineering, the concept of comfort, wide vision, spacious and bright, user-friendly front gear mechanism, equipped with adjustable suspension seats, silicone oil shock absorption, comfortable driving environment. |  |

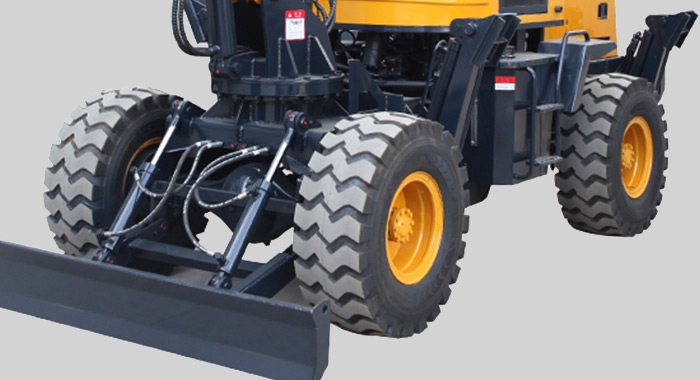

 | Off-road TiresOff-road anti-skid tires, with deeper texture, strong grip, not afraid of terrain. |

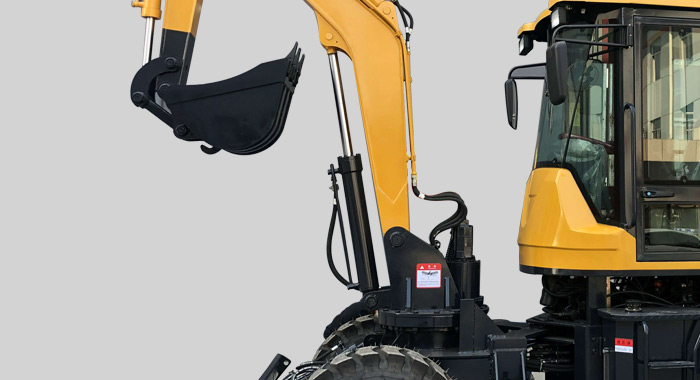

Hydraulic SystemWell-known brand multi-way valve and advanced rotary reducer, fast action, sufficient strength, good coordination of compound action, high reliability and long service life. |  |
| MODEL | KV30 |
| WEIGHT | |
| Total weight | 3000kg |
| SIZE | |
| Bucket capacity | 0.15m³ |
| total length | 5600mm |
| total transport height | 2400mm |
| Vehicle width | 3000kg |
| Total Weight | 2700mm |
| ground clearance | 260mm |
| Maximum excavation height | 4000mm |
| Maximum unloading height | 2600mm |
| Max. digging depth | 2500mm |
| Maximum digging radius | 3000mm |
| wheelbase | 2150mm |
| Maximum horizontal digging distance | 2900mm |
| wheel tread | 1500mm |
| DRIVE | |
| engine power | 37kw/50 |
| Engine Type | Yunnei 490 |
| hydraulic system pressure | 16MPa |
| WALKING CHARACTERISTICS | |
| Working device mode | Back Hole |
| Walking speed | 30km/h |
